Thin Design Four Way Cassette Chilled Water Fan Coil Unit with 4
Way Air Flowing
Product Description:
Our FCU comes equipped with a ZG3/4’ water connection, allowing for
easy installation and maintenance. The unit also boasts three fan
speeds, providing flexibility and control in adjusting the air flow
to suit your specific needs.
Our Chilled Water Fan Coil Unit is suitable for both 2-pipe and
4-pipe systems, making it highly versatile and adaptable to
different setups. It can be used with both hot and chilled water,
providing both heating and cooling solutions, depending on your
requirements.
One of the standout features of our FCU is its coil type - copper
tube and aluminum fin. This combination ensures efficient heat
transfer, ensuring that your space is heated or cooled quickly and
effectively. The use of high-quality materials also ensures
durability and longevity, making it a cost-effective solution in
the long run.
For added convenience, our FCU also comes with an optional return
air plenum, which can be easily installed for improved air
circulation and better air quality. This ensures that your space is
always comfortable and healthy, as it helps to filter out dust,
allergens, and other harmful particles.
In conclusion, our Chilled Water Fan Coil Unit is a top-performing
product that is suitable for both residential and commercial
spaces. Its versatile design, efficient technology, and
user-friendly features make it an excellent choice for those
looking for a high-quality heating and cooling solution. Invest in
our FCU today and enjoy a comfortable and efficient environment all
year round!
Features:

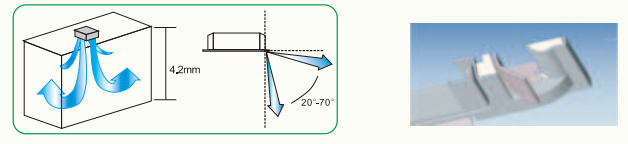

1,4-way air flowing,which can uniform temperature distribution in
the room.
2,Specially design to avoid the air-short flowing.
3,Thin design unit which can be installed in a limit ceiling(the
Min.thickness is 240mm)
4,Easy to be installed, Low installation cost
Comparing to the ceiling conceal ducted FCU,we do not need to
install the air inlet and outlet, and also the ducted connection
and insulation.
5,Remote controller is standard and wired controller is optional.
6,Auto swing
Using advanced 3D software to design the centrifugal fan
withstreamline and big diameter turbine.
7,Quiet running
The efficiency of airflow rate,heavy wind volume and low noise
isexcellent.Because the ventilator wheel is processed to sine strip
seam,which enhances its flexibility,anddrops the vibration of
ventilator during revolving in large scale,simultaneously reduced
the motor noise caused byventilator swinging.
Technical Parameters:
| Aluminum Fins | Hydrophilic Aluminum Fins |
| Number Of Fan Speeds | 3 |
| Coil Type | Copper Tube And Aluminum Fin |
| Water Connection | ZG3/4’ |
| Air Flow | 200-1500 CFM |
| Operating Voltage | 220V/1ph |
| Control Method | Remote Control |
| Fluid | Chilled Water/hot Water |
| |
