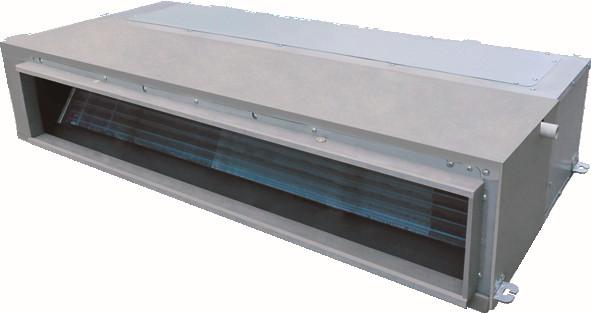

VRF Medium Static Pressure 70Pa Ceiling Concealed Duct Type Indoor
Unit with Optional Drain Pump
Product Description:
The DC Inverter Mini VRF is designed to use R410A refrigerant, a
non-ozone depleting substance with excellent thermodynamic
properties. This refrigerant is environmentally friendly and has a
low global warming potential, making it an eco-conscious choice for
those who prioritize sustainability.
One of the key features of the DC Inverter Mini VRF is its ability
to connect up to 12 indoor units, which can be controlled
individually or as a centralized system. The indoor units come in
different types: ceiling cassette, concealed duct, wall mounted,
floor ceiling and floor standing, providing flexibility in
installation and ensuring maximum comfort for occupants.
The DC Inverter Mini VRF is also equipped with a direct drive mini
VRF system, which ensures smooth and quiet operation. This feature
is particularly important in settings such as libraries, hospitals,
and offices where low noise levels are essential.
The DC Inverter Mini VRF is a cost-effective solution for those
looking for an air conditioning system that is energy efficient,
environmentally friendly, and easy to install. Its advanced
features, including the DC inverter compressor and direct drive
mini VRF system, make it a reliable and efficient option for any
home or office.
Features:
1. Static pressure
70Pa ESP is standard, suitable for lang distance air supply, 30Pa
is optional(can be set on site), suitable for low noise requirement
rooms.
2. Fresh air intake
A reserved outside air intake port allows outdoor air to be
introduced directly into the unit, no need for a seperate
ventilation system.
3. Convenient in drainage pipe installation
Reserved drainage pipe outlet holes on left side and right side,
installer can choose the outlet holes on site as per actual
conditions, flexible
for drainage pipe installation.
4. Low noise design
Using multiple noise reduction technology, including the design of
high efficiency low noise motor, aviation fan wheel, low vibration
wheel casing, unique design, the inner wall configuration with high
quality insulation materials, and so on, to make the units running
in a low noise condition.
5. DC fan motor is optional
The power consumption of DC fan motor can be reduced greatly in
comparison to corresponding AC type.
Technical Parameters:
| Technical Parameter | Value |
|---|
| Refrigerant | R410A |
| Cooling Capacity | 7.1-15kW |
| Control System | Centralized Control, Individual Control |
| Piping Length | up to 100m |
| Max. Elevation Difference | 30m |
| Indoor Unit Types | Duct |
| Power Supply | 1-phase, 220V, 50/60Hz |
DC Inverter VRF product suitable for heating in low temperature.
